TESTA Analytical Solutions is one of the few manufacturer focused on GPC/SEC instrumentation. For Particle Sizing, SLS ad Zeta Potential we partnered with Brookhaven Instruments Corp.

Optimised Zeta Potential Measurement in Organic & Aqueous Media

Berlin, Dezember 2018

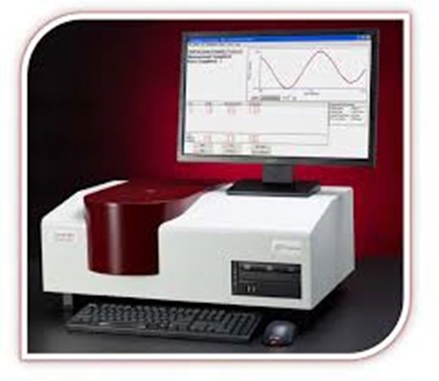

Nanobrook ZetaPALS zeta potential analyser

Testa Analytical Solutions e.K reports
that its Nanobrook ZetaPALS zeta potential analyser is uniquely optimised to make sensitive and precise measurements in both organic and aqueous media.

Phase analysis light scattering (PALS)
Typically making zeta potential measurements in organic (non polar) solvents requires much higher sensitivity than in aqueous (polar) solutions. The Nanobrook ZetaPALS analyser achieves this using phase analysis light scattering (PALS).
Using proprietary PALS technology, the Nanobrook ZetaPALS can be used to make
zeta potential measurements up to 1,000 times more sensitive
than traditional light scattering methods based on the shifted frequency spectrum.

The materials
Made of PEEK with  a Palladium (Pd) electrode assembly - the Nanobrook ZetaPALS measurement cell is resistant to the widest range possible of solvents, and offers excellent chemical stability, easy cleaning and long-term top performance.
Precision Peltier temperature control enables precise zeta potential measurements from -5 °C to 110 °C. For laboratories tasked with just analysing aqueous solutions inexpensive disposable plastic cells can be used with the high performance electrode assembly. For applications in organic solvents, quartz cells are available.

Almost all particulate or macroscopic materials in contact with a liquid acquire an electronic charge on their surfaces. Zeta potential is an important and useful indicator of this charge which can be used to predict and control the stability of colloidal suspensions or emulsions, for example. The greater the zeta potential the more likely the suspension is to be stable because the charged particles repel one another and thus overcome the natural tendency to aggregate. The measurement of zeta potential is often the key to understanding dispersion and aggregation processes in applications as diverse as water purification, ceramic slip casting and the formulation of paints, inks and cosmetics.

For further information
on using a Nanobrook ZetaPALS analyser to zeta potential measurement in both organic and aqueous media please visit
or contact Testa Analytical Solutions on +49-30-864-24076 / info@testa-analytical.com.

Download press release
